X-ray machine and It's Parts

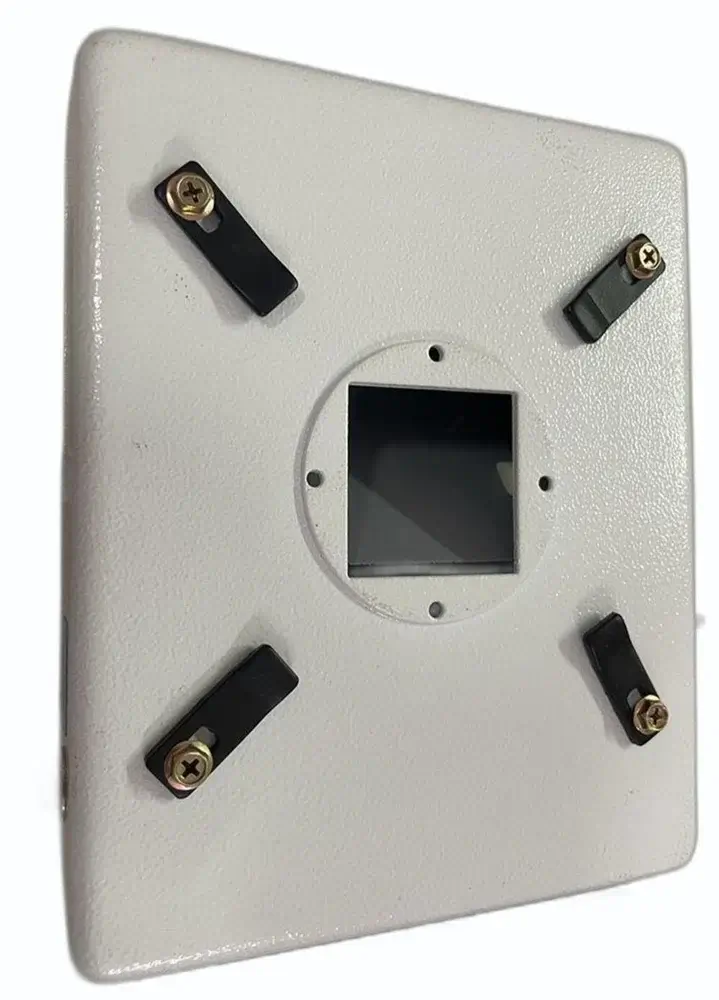

X-ray Collimator

A device that shapes and limits the X-ray beam, Reduces radiation exposure to surrounding tissues

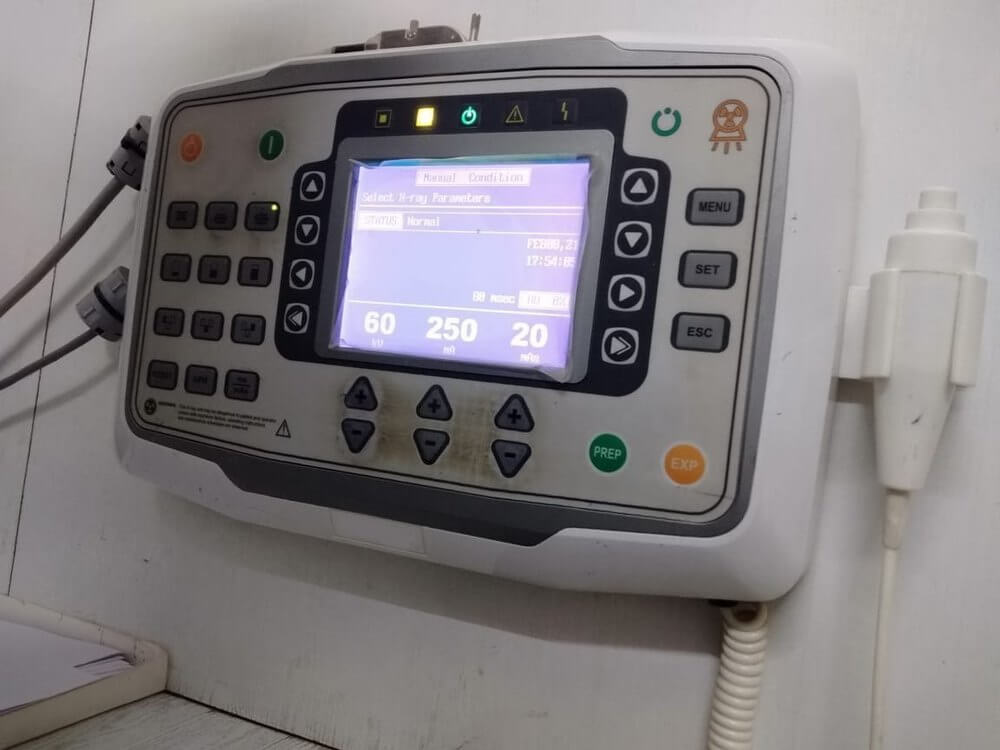

X-ray Control Panel

Allows the operator to set voltage, current, and exposure time, Modern panels have digital displays and preset programs

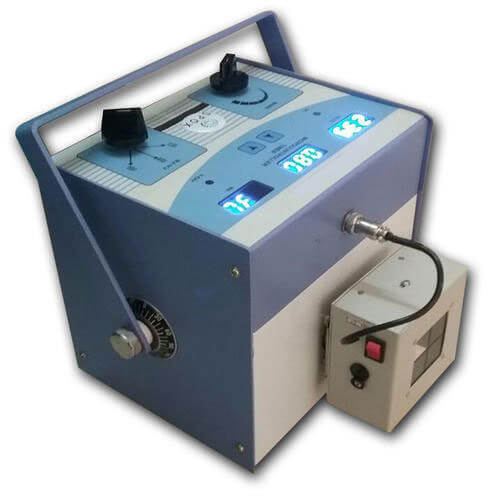

X-ray High-Voltage Generator

Supplies high voltage to the X-ray tube (typically 20–150 kV),Converts AC to DC for stable X-ray production

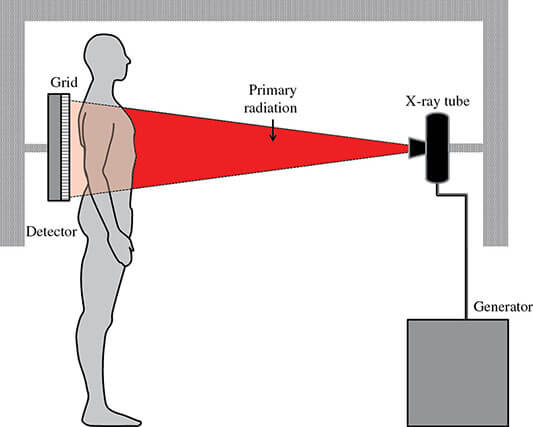

X-ray Detector / Image Receptor

Converts X-rays into visible images

X-Ray tube

The core component that produces X-rays, Contains a cathode (electron source) and anode (target for X-rays)
